Flatpak is a special kind of coiled tubing which encapsulates stainless steel pipes or cables of different kinds and diameters, one FlatPak offers multiple channels including channels for telecom, hydraulics and fluid delivery, etc. Flatpak makes multiple channel site operations available and it’s suitable for operations such as flowback under negative pressure, thermo- production of heavy oil and logging in live well, etc.
Flatpak production in CBM wells
fluid drain in the process of oil&gas and shale gas production periodin vertical, deviated or horizontal wells
Customized Flatpak inspection/ logging
Flatpak wellbore cleaning and sand flushing under negative pressure
other Flatpak operationsin live well

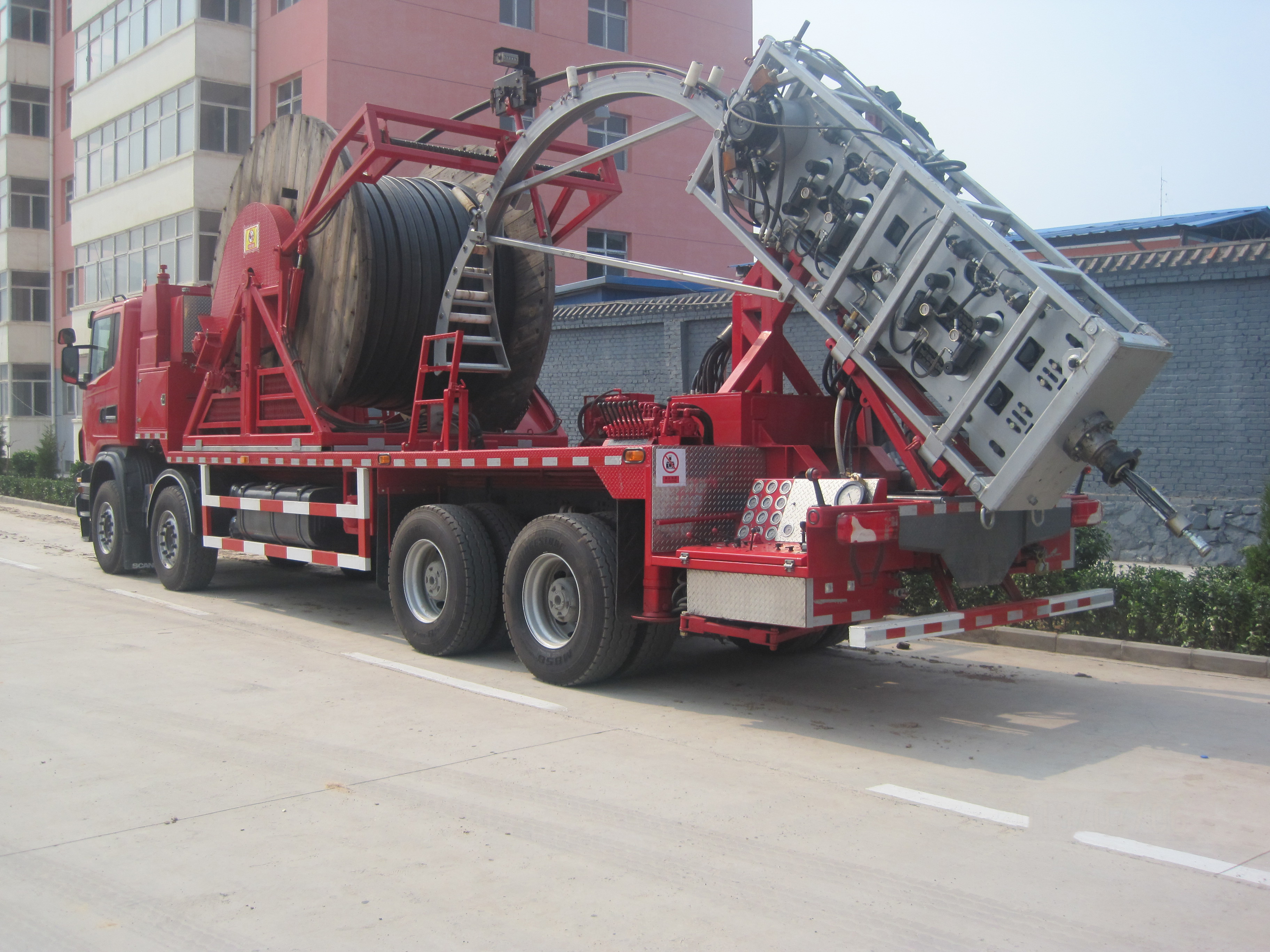

| The main components | Performance parameters | |
Chassist |
Scania 8 x 4 drive chassis Engine 440HP |
|
Injector |
Max. RIH depth 2500m Max. pulling force 70000lb(31.75t) |
|
FP |
different FP configurations based on different work scopesFlatpak: available Flatpak: 1” pipe x 3 + 1/4”pipe x 1+ 4mm cable x 1 Max. tensile: 35000lbs(15.875t) |
|
pumps |
PCP |
Length :11.64m, OD:119mm Temp. 80℃, PCP150℃ rate: 0—28m³/day |
Jet pump |
Working parameter (N/A) | |
HSP |
Length 5.59 m OD: 95.25mm ( 3-3/4”) Rate :0.1—30m³/day |
|
