Orion has specialized skid mounted acidizingacidizing equipment w/c professional acidizing and acid fracturing operation team. Orion developed and optimized many acid fracturing technology, acid fluid system and acidizing result prediction & appraisal system and other technological systems and standardized implementation process based on Orion’s NA research team’s advanced designtechnology and philosophy.
AcidizingAcidizing: deep well acidizing, hi-temperature acidizing, re- acidizing, heavy oil well acidizing, divertingacidizing, fracture well acidizing, deep area acidizing, new type de-blocking acidizing, combined water blocking and acidizing, temporary blocking acidizing, heavy weight acid acidizing and viscous acidizing, etc.
Acid fracturing : multi-stage acid fracturing, alternative pad acid fracturing,fluid loss control acid fracturing, delayed acidizing and closed injection acidacid fracturing, etc.
The related technologies are as follows:
reservoir optimization
design optimization
acid fluid priority
multi-stage acidizing, horizontal well acidizing
acid fracturing w/ coiled tubing and abrsajet
foam acidizing and liquid nitrogen energizeracid fracturing

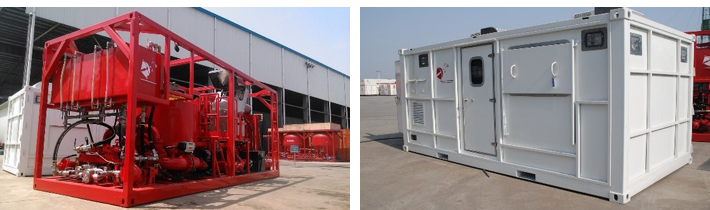

Skid-mounted unit is handy for relocation and rig up, good for complex operational conditions such as offshore platform and desert . State of the art telecom and control operational systems satisfy all kinds of acidizing processes.
| Name of unit | Specs | Quantity | Technical specification |

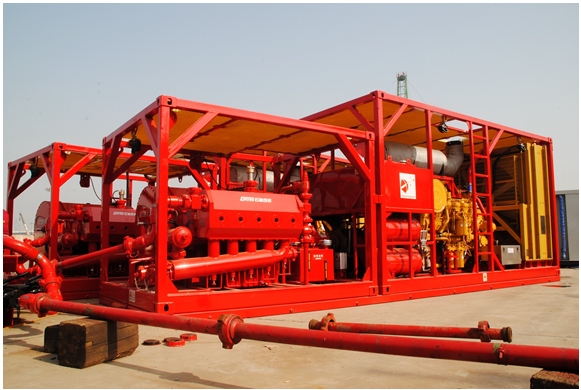

| Acid fracturing skid | SYLQ2000-105 | 2 | pressure rating 105MPa 2.46m³/min Max rate 2.46m³/min |
| Acid feed skid | ATS-35 | 1 | Max. rate 6m³/min |
| Instrument skid | SEV5140TYB | 1 | Possible of control 16 pump skids at the same time |
| Acid blending skid | AMS-35 | 1 | Max. acid mixing volume 6m³/min, equipped with 4 liquid addition, 2 solid addition systems and 3 suction pumps （HF, HCl and fresh water） |

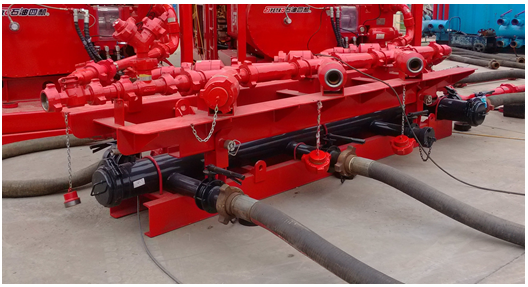

| Hi-low pressure manifold skid | GH105 | 1 | Size of manifold 3" Max pressure rating 105MPa |
