Orion offers integrated fraccing engineering and technical services, including frac design, equipment and tools , material organization, site management of operation and post- frac evaluation.
Orion’s conventional fraccing includes csg fracing in vertical or horizontal wells, tubing fracting, jointed tubing packer fracing and jointed tubing cut&fraccing.
Associated technologies include：
Design, simulation and software appraisal technology
fracing fluid technology
fracing technique
fracing test technique
laboratory and QAQC

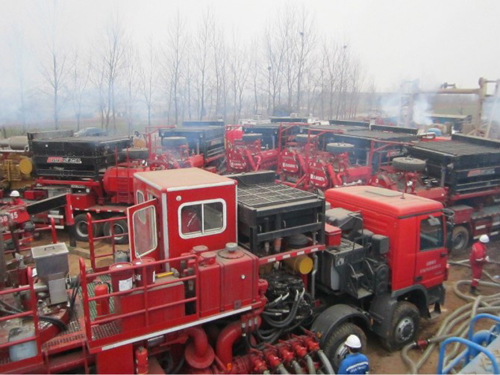

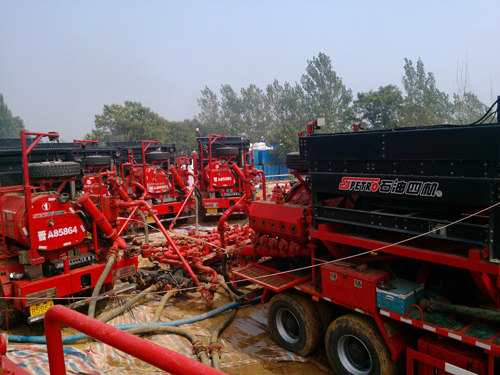

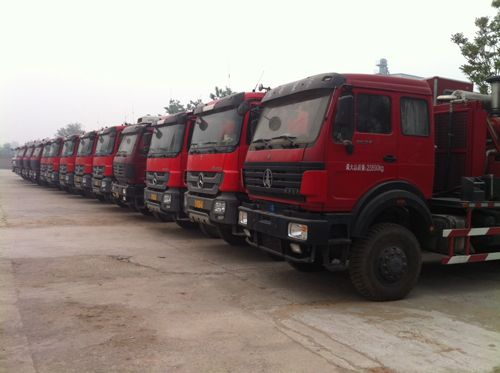

Orion has one set 12,000 HHP frac spread which may satisfy deep well fraccing.
| name of unit | specs | quantity | Technical specification |

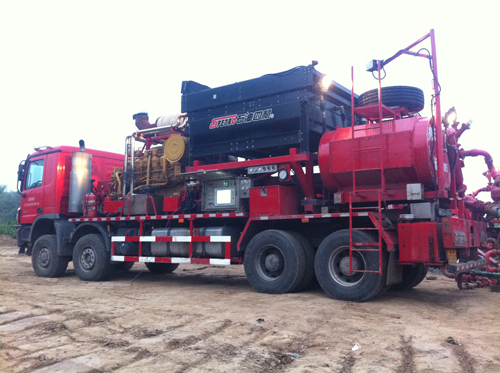

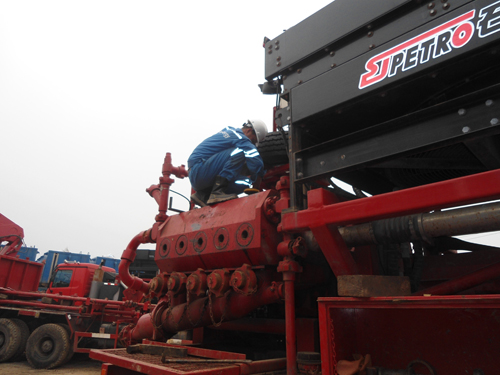

fracpump |
YL105-1490（2000HP） |
6 |
3 x 4” plunger max. pressure 105.6MPa, max. rate 2710L/min 3 x 4.5” plunger Max.surface pressure 83.4MPa, max. rate 3437L/min |
Sand tank unit |
YL5250TSG |
4 |
12m³ |

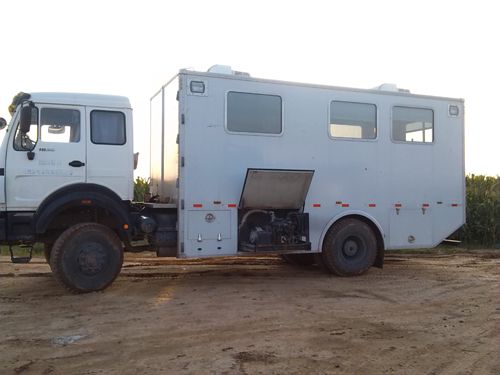

measuring truck |
SEV5140TYB |
1 |
control 20 pumps at the same time |
Manifold truck |
GHC105 |
1 |
3” manifold Max. working pressure 105MPa crane’s max. load 12100KG |
blender |
S360(100BPM) |
1 |
Max. flow 16m3/min(100BPM) Max. sand 10000kg/min Max. liquid additives 10-50L/min（2.6-13.2GPM） Max. solid addition capacity 102L/min（27GPM） |
fluid feed unit |
SEV5240TGY |
1 |
Max. rate 5.6m3/min |
fluid tank |
nested tank |
20 |
single nested tank volume 70m3 |
Case 1: Jointed tbg cut&frac at xxx concession in Henan in 2013
multi- stage in horizontal well
11 stages fraccing
640 tons sand
An excellent stimulation result with an overall smooth operation , zero HSE incident
Case 2: Fraccing project for certain foreign company in 2013
Orion formulated fraccing program based on reservoir conditions
Accomplished 67 well fracing jobs
80 tons/stage, success rate was 93% ,zero HSE incident
2 times of the stimulated result compared with other fracing team’s job
