For highly sensitive and low pressure reservoirs, nitrogen is used to reduce reservoir damage, fluid loss and increase flowback efficiency. Nitrogen assisted fraccing technology has been widely used in many industries, such as tight oil&gas, CBM. Orion has been committed to the research of nitrogen assisted fraccing technology and its onsite operation ,nitrogen equip was introduced in 2013 which facilitated Orion’s advanced position in the industry in China.
Nitrogen foam fraccing
Nitrogen energizer fracing
Nitrogen mixed fraccing
Pure nitrogen fraccing
Nitrogen de-blocking
Nitrogen gas lift

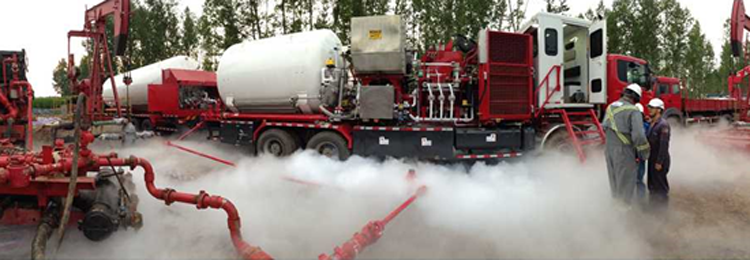

Orion has 6 sets of nitrogen units, the compositepump rate is 2160scm/min; the composite liquid nitrogen volume of tanks is 170 cubic meters; Scania chassis are equipped specifically for rural operation in China.

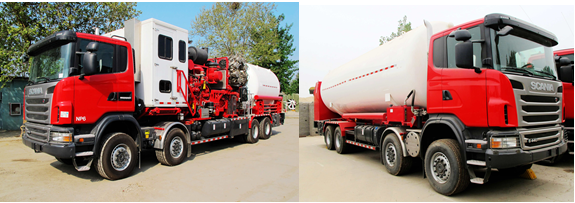

| Nitrogen pump | nitrogen tank tank |
Manufacturer：NOV Enerflow Chassis: Scania G440 Liquid nitrogen tanker: 7.5m3 Max. displacement: 360scm3/min Max. working pressure: 68950kpa Nitrogen bleed temperature: 20℃~49℃ |

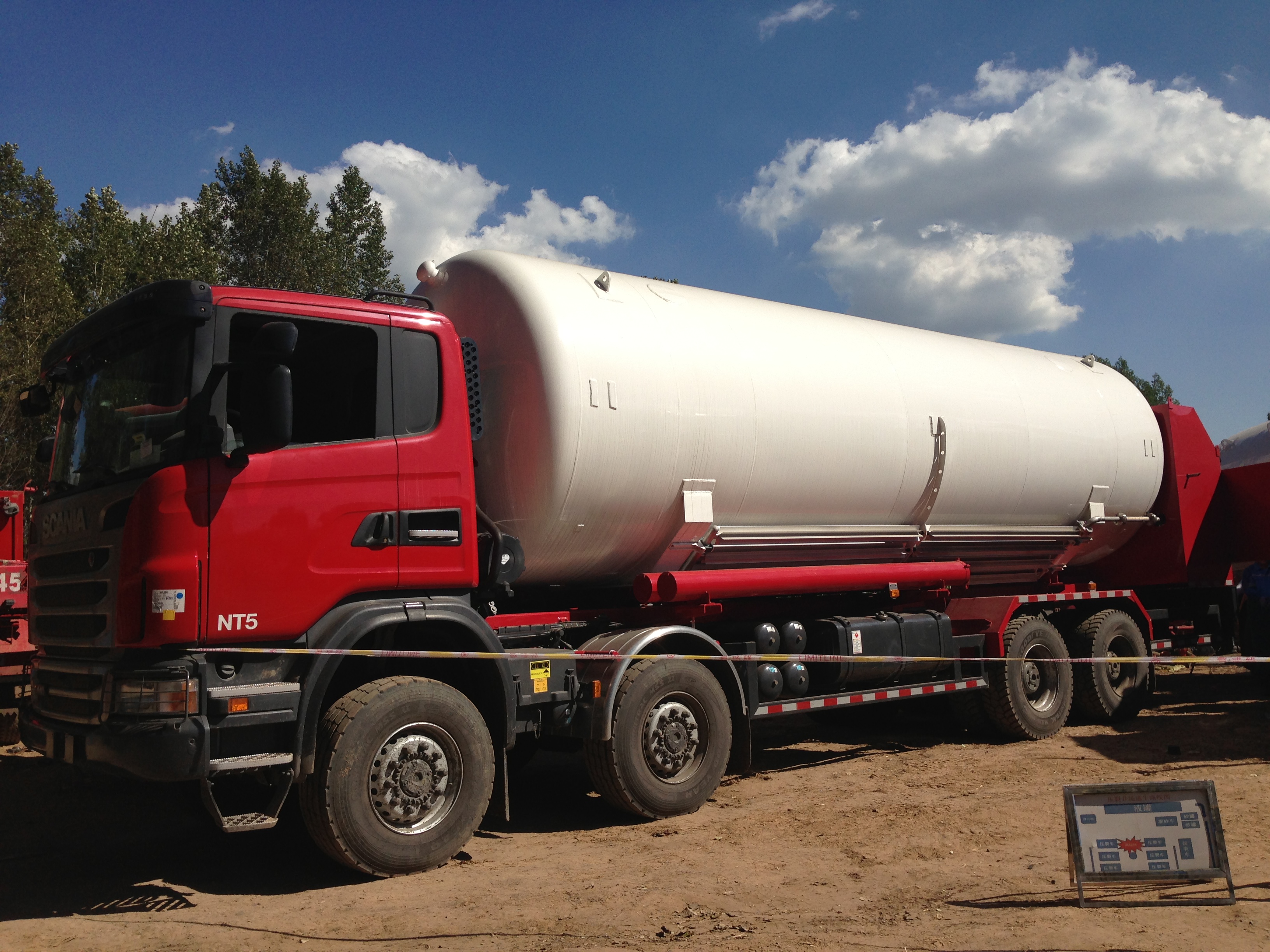

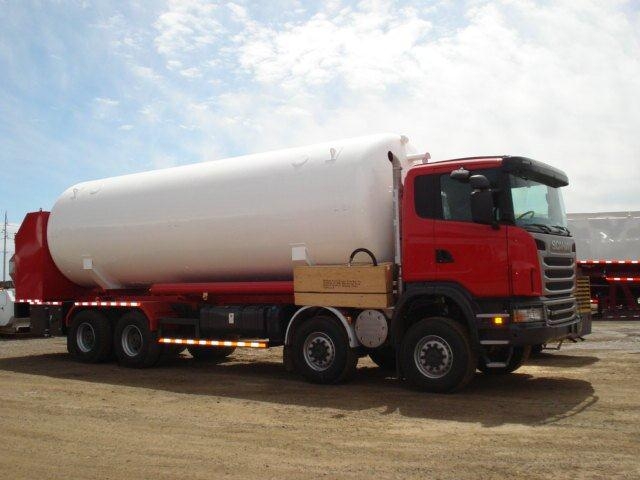

Nitrogen bleed temperature: NOV Enerflow Chassist: Scania G440 liquid nitrogen tank: 20.820m³ Vacuum insulated boost pump’s max. displacement: 757L/min Max. boost pressure of boost pump: 1.03MPa |

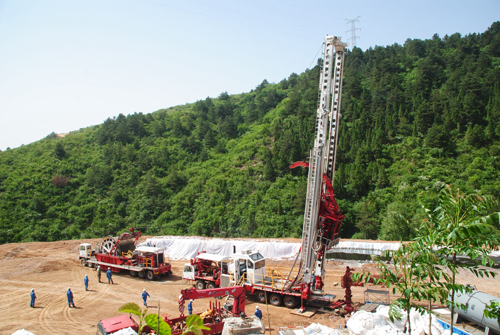

Case 1: Qinshui Nitrogen mixing Fracing Project, 2013
Nitrogen mixing fraccing to reduce reservoir damage
55.2 tons of sand
206 m3 liquid
13104 scm nitrogen

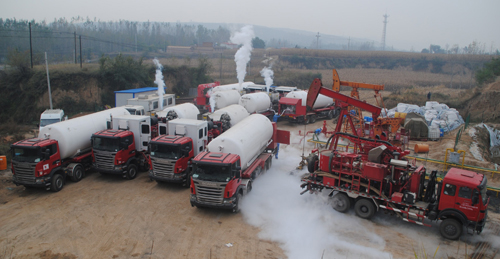

Case 2: Shouyang Pure Nitrogen Fracing Project, 2013/p>
Pure nitrogen as gas energizer to increase flowback
Nitrogen rate was 1000 scm/min
24000 scm Nitrogen
